Description

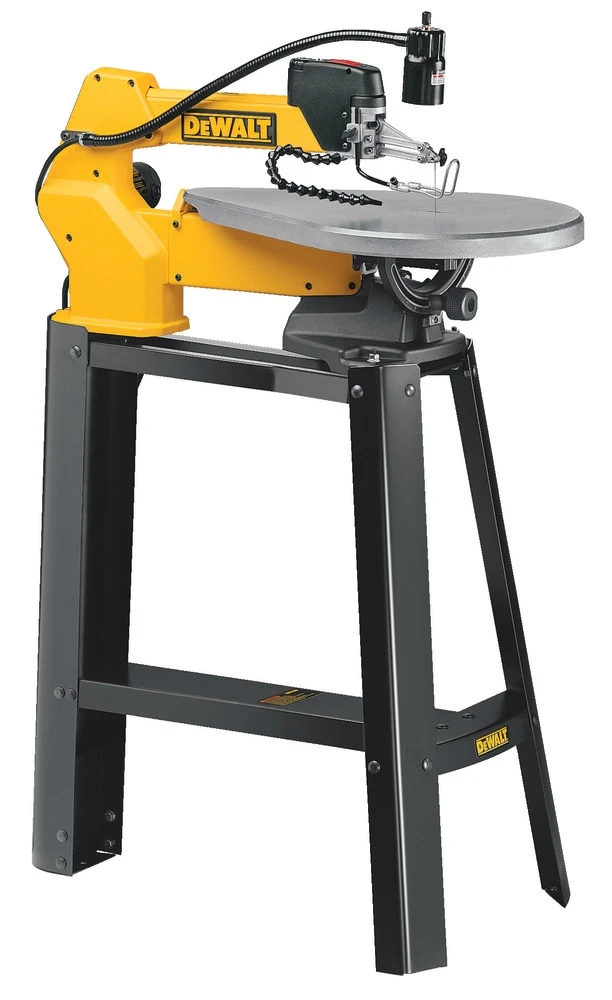

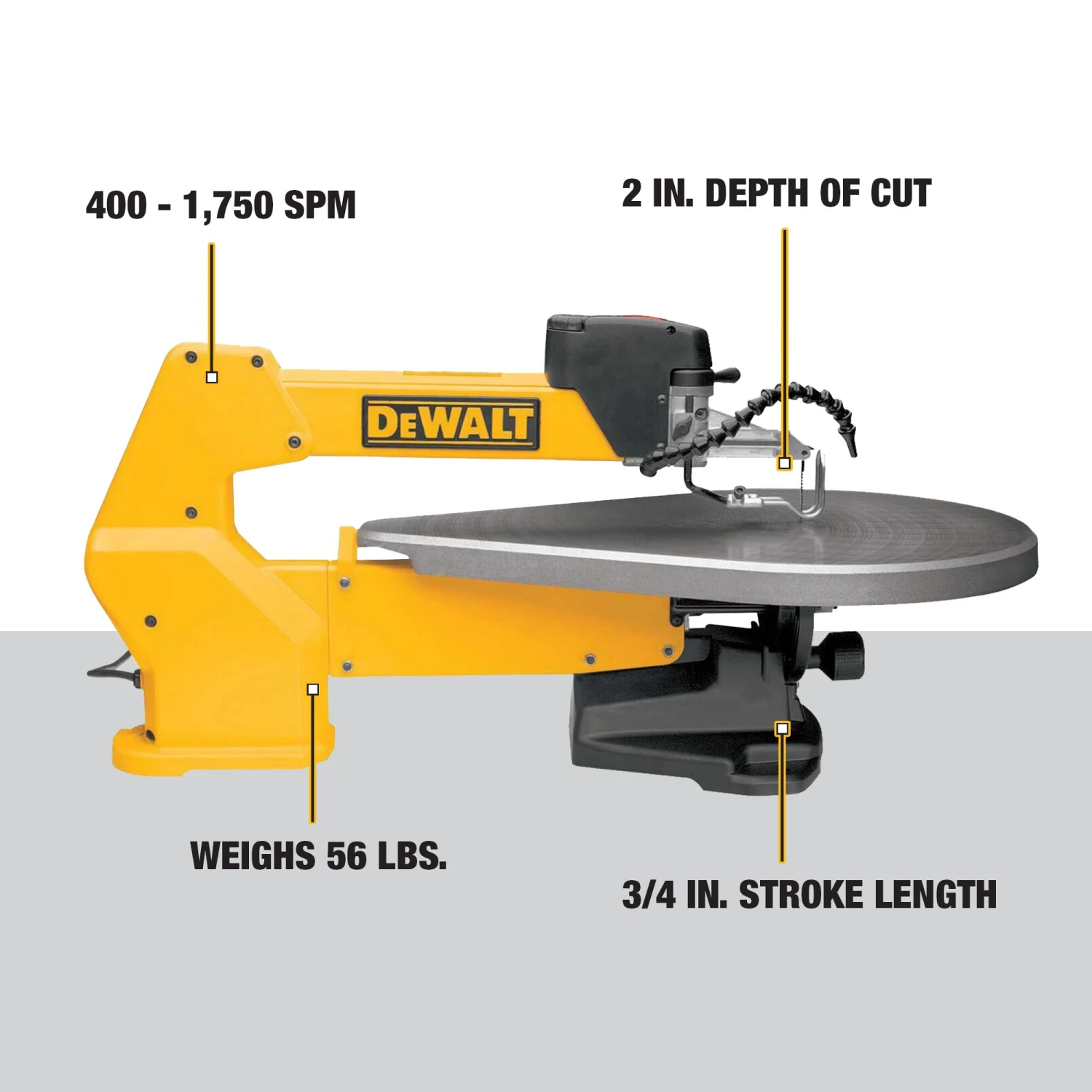

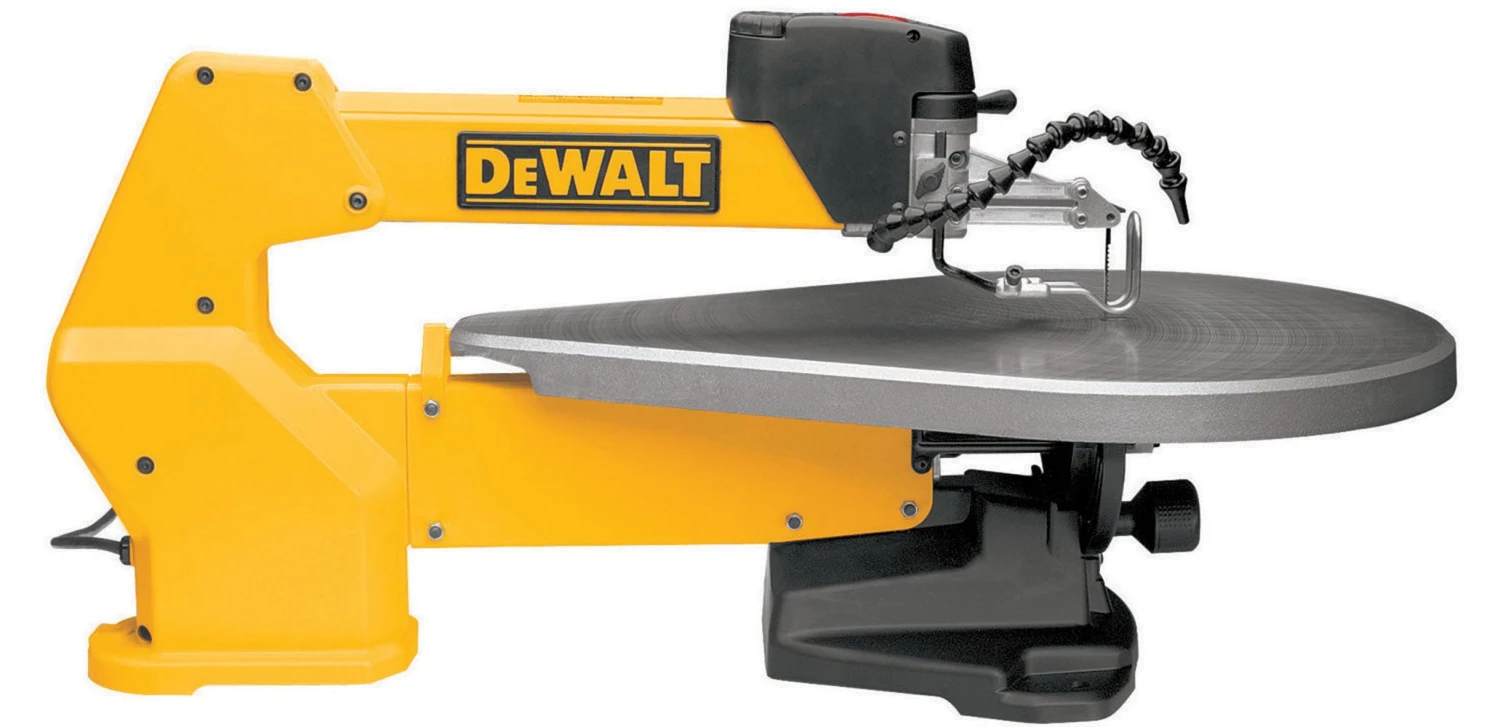

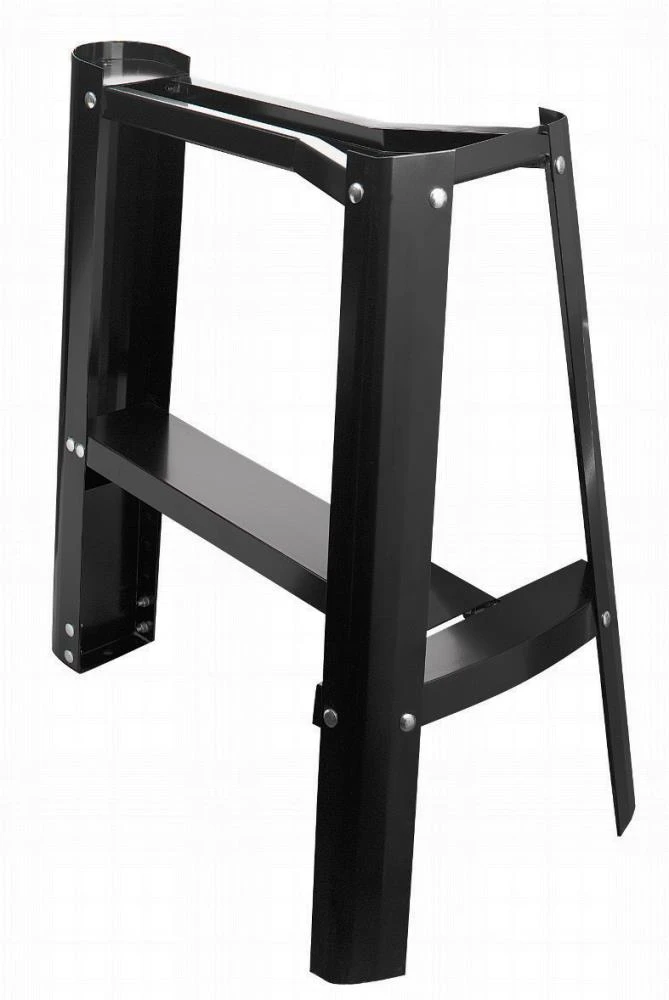

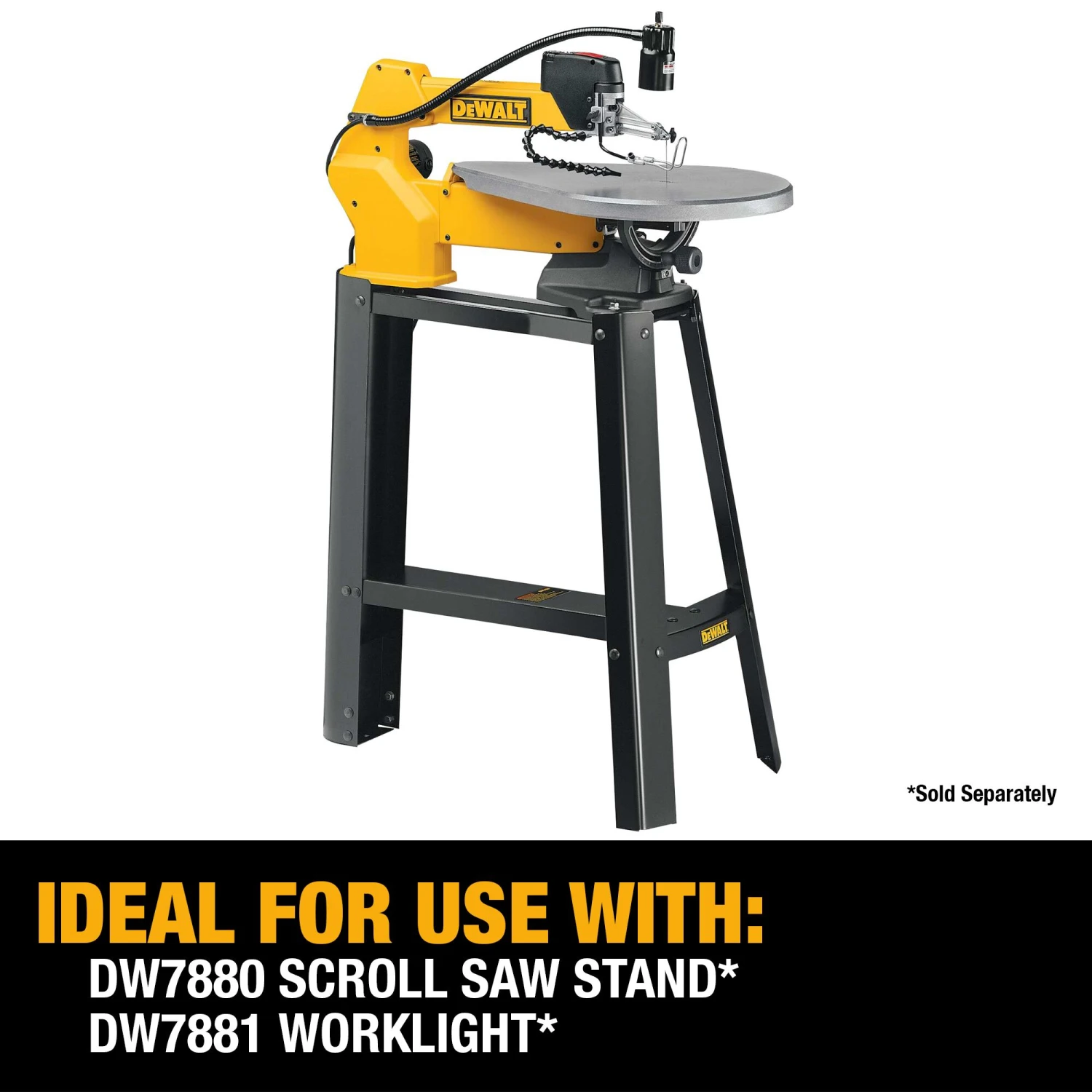

Double parallel link arm design dramatically reduces vibration and noise, for extremely accurate cuts. Exclusive tool-free blade clamps, On-off switch, electronic variable speed, flexible dust blower and blade-tensioning lever are all located on the front upper arm. Arm design pivots from the back of the saw to the front and lifts so blade can be easily threaded through the material for inside cuts. Unique arm design keeps the blade perpendicular to the work. Oversized, cast-iron table provides excellent material support and bevels 45 degrees left and right. Specs: Motor 1.3 amp rating, 120V AC. 400-1,750 cutting strokes per minute. Table size 16 x 23-3/4. Weighs 56 lbs. Meets OSHA standards, CSA approved and U.L. Listed. Stand Not Included . Featured length of the flexible shaft is approximately 22 inches long

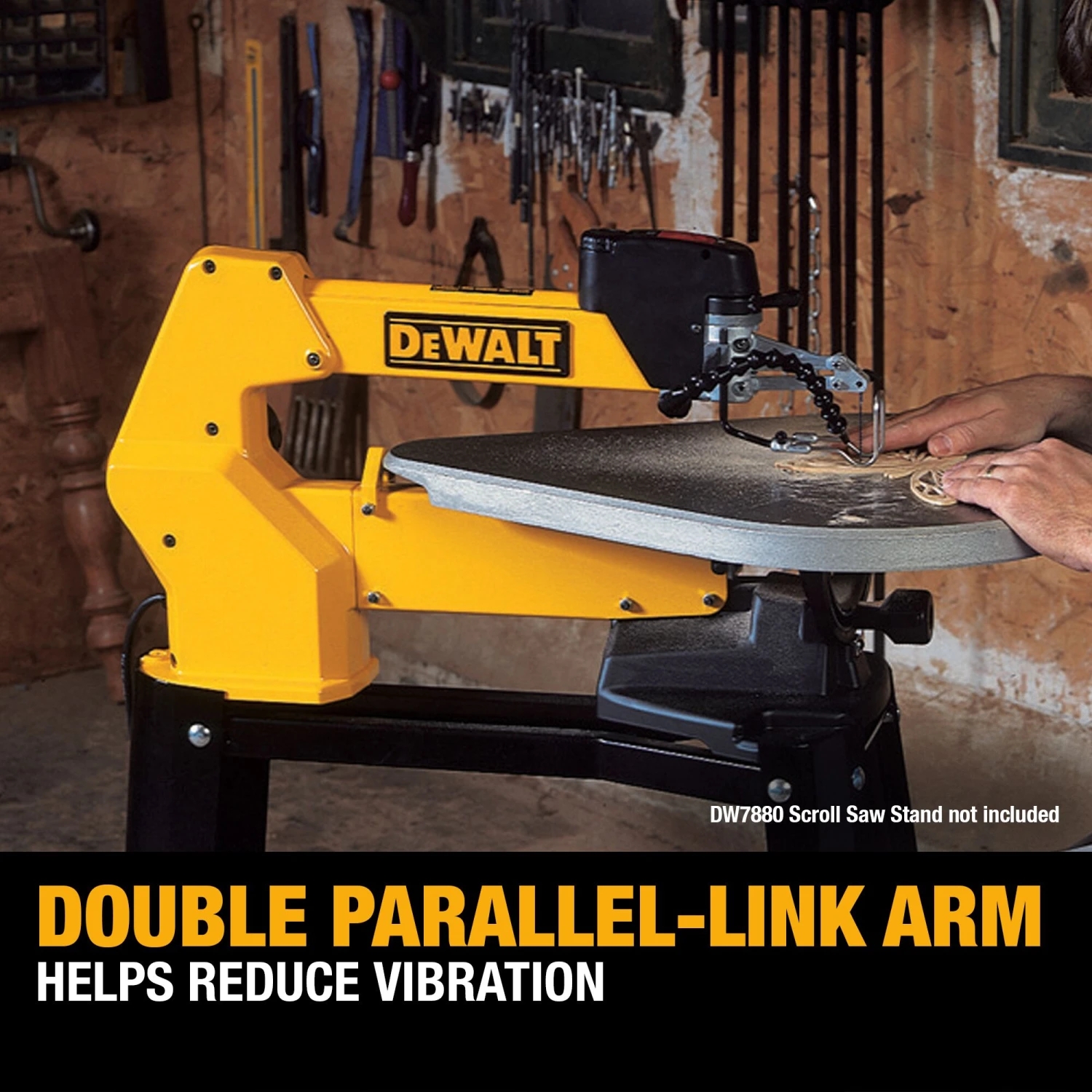

Double parallel-link arm design dramatically reduces vibration and noise, for extremely accurate cuts
Tool-free blade clamps allow blade changes in seconds
On-off switch, electronic variable speed, flexible dust blower, and blade-tensioning lever are all located on the front upper arm
Arm lifts so that blade can be easily threaded through the material for inside cuts

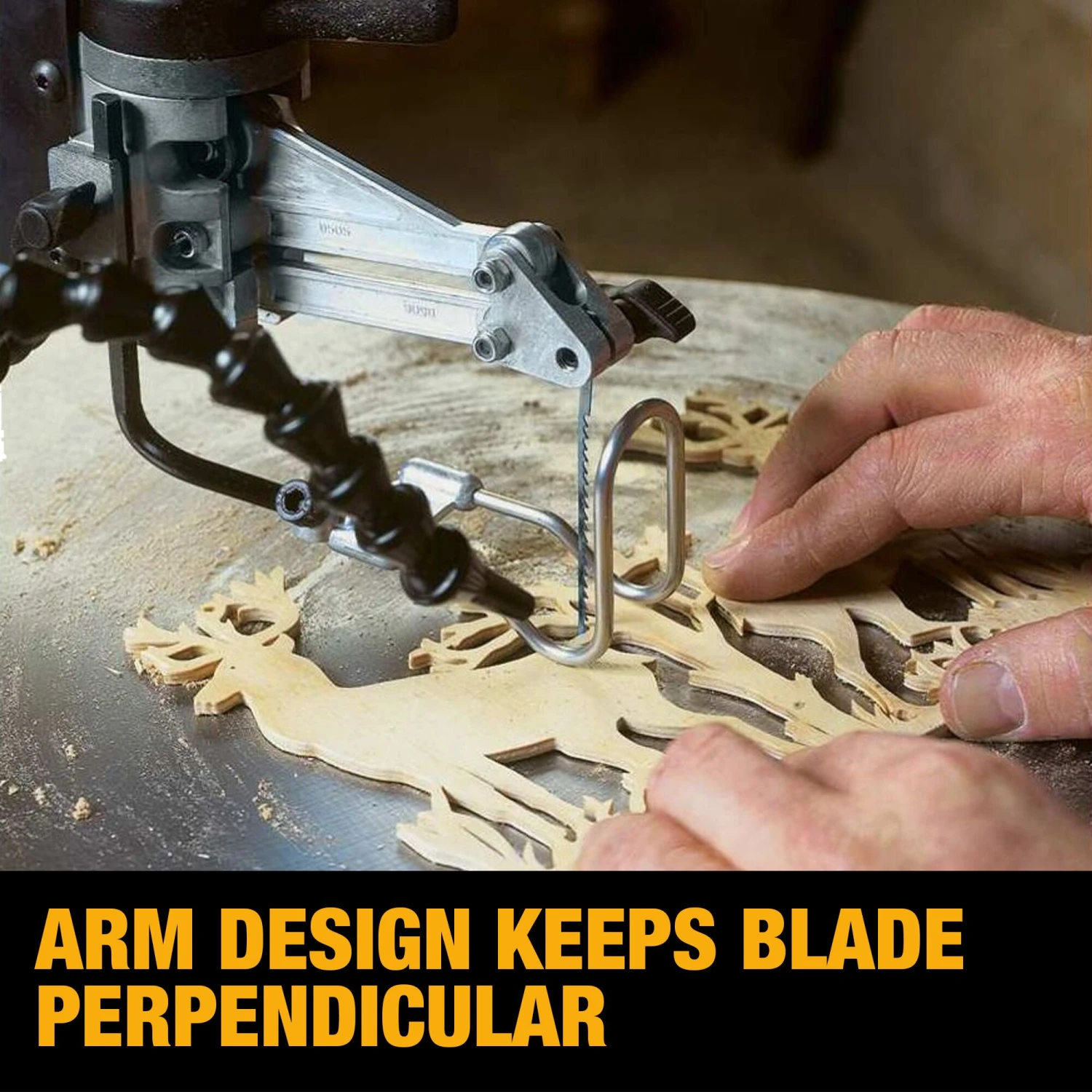

Arm design keeps the blade perpendicular to the work, dramatically reducing over or under cutting
Oversized, cast-iron table provides excellent material support and bevels 45 degrees (left and right)
Independently certified to applicable standards
Includes DW788 scroll saw, hex wrench, and blades

Information

Shipping

We offer reliable shipping for all DEWALT home tool orders.
Orders over $50 qualify for free shipping, giving you a convenient and cost-effective shopping experience for your household tool needs.

Delivery Time

Estimated delivery time is 10–15 business days after order confirmation. Delivery times may vary depending on location and carrier conditions.

Returns & Exchanges

If you are not completely satisfied with your purchase, you may request a return or exchange within the eligible return period. Products must be unused and in original condition.
For full return instructions, please contact our support team.

Payment Methods

We accept secure payments through trusted providers, including Visa, MasterCard, JCB, and PayPal, ensuring a safe and smooth checkout process.

Assistance

Need help with your order or have questions about our products?
Our customer support team is here to assist you.

Email: [email protected]

Specifications

Color/Finish Family	Yellow
Package Contents	Scroll saw, hex wrench, blades
Blade Type	Straight
Chuck Type	Keyless
Depth (Inches)	10
Dust Chute Diameter(OD) (Inches)	0
Height (Inches)	10
Length (Inches)	28
Maximum Depth of 45 Degree Cut (Inches)	2
Maximum Depth of 90 Degree Cut (Inches)	2
Maximum Metal Cutting Capacity (Inches)	0
Maximum Throat Width/Depth (Inches)	20
Maximum Wood Cutting Capacity (Inches)	2
Stroke Length (Inches)	0.75
Weight (lbs.)	56
Width (Inches)	19
Amperage	1.3
Adjustable Shoe	No
Blade Included	Yes
Built-In Light	No
Chuck Key Storage	Yes
Cordless	No
Dust Blower	No
Dust Chute	No
Dust Collection	No
Hold Down Foot Included	No
Keyed/Keyless	Keyless
Speed Range High (SPM)	1750
Speed Range Low (SPM)	400
Table Tilt Range Left (Degrees)	45
Table Tilt Range Right (Degrees)	45
Variable Speed	Yes
Warranty	3-year limited
CA Residents: Prop 65 Warning(s)	Yes
Safety Listing	UL safety listing
UNSPSC	27112700
